在本文中，我们将通过在市场上可用的各种类型的迷你SSD之间进行迷你SSD性能比较。大多数迷你SSD可以在较新的笔记本电脑，超薄笔记本电脑型号上找到。
In the past, laptop manufacturers mostly used 2.5″ hard drives (mechanical spinning disk platters) featuring the standard SATA interface. But as technology progressed, along with memory prices declining, it was only a matter of time before they the all started to use SSDs instead.
The performance benefits of having a SSD in your laptop is without question. It’s definitely a lot faster and more responsive than having a standard 2.5″ mechanical hard drive. However, there are several form factors that SSDs currently use. There’s mSATA, M.2 and PCI Express mini … all of which use different interfaces and offer different levels of performance. So in this article we’ll be breaking down the tech terms and taking a look at the performance comparison between these different interfaces, and hopefully this will give you a better picture and understanding.
Ok, before we go any further, and for all those who don’t know what SSDs are … here’s a little blurb taken from Wikipedia. We’ve also included some information on the various types of form factors currently being used by manufacturers.
“A solid-state drive (SSD, also known as a solid-state disk although it contains neither an actual disk nor a drive motor to spin a disk) is a solid-state storage device that uses integrated circuit assemblies as memory to store data persistently. SSD technology primarily uses electronic interfaces compatible with traditional block input/output (I/O) hard disk drives, which permit simple replacements in common applications.”
Mini-SATA (abbreviated as mSATA), which is distinct from the micro connector, was announced by the Serial ATA International Organization on September 21, 2009. Applications include netbooks, laptops and other devices that require a solid-state drive in a small footprint.
M.2, formerly known as the Next Generation Form Factor (NGFF), is a specification for computer expansion cards and associated connectors. It replaces the mSATA standard, which uses the PCI Express Mini Card physical layout. Having a smaller and more flexible physical specification, together with more advanced features, the M.2 is more suitable for solid-state storage applications in general, especially when used in small devices like ultrabooks or tablets.M.2标准设计为对MSATA标准的修订和改进。
PCI Express Mini Card (also known as Mini PCI Express, Mini PCIe, Mini PCI-E, mPCIe, and PEM), based on PCI Express, is a replacement for the Mini PCI form factor. It is developed by the PCI-SIG. The host device supports both PCI Express and USB 2.0 connectivity, and each card may use either standard. Most laptop computers built after 2005 use PCI Express for expansion cards; however, as of 2015, many vendors are moving toward using the newer M.2 form factor for this purpose. Due to different dimensions, PCI Express Mini Cards are not physically compatible with standard full-size PCI Express slots; however, passive adapters exist that allow them to be used in full-size slots.
mSATA vs M.2 vs PCI Express Mini
What is mSATA, M.2 and PCI Express Mini? Well, they are in factNOTcomputer interfaces but rather form factors (the size and connector type). mSATA and its replacement M.2, generally uses the SATA II/III interfaces, while the PCI Express Mini is kind on its own and usually uses M.2 form factor. See below for a summary of the different types of interfaces.
SATA I.(revision 1.x) interface, formally known as SATA 1.5Gb/s, is the first generation SATA interface running at 1.5 Gb/s. The bandwidth throughput, which is supported by the interface, is up to 150MB/s.
SATA I.I(revision 2.x) interface, formally known as SATA 3Gb/s, is a second generation SATA interface running at 3.0 Gb/s. The bandwidth throughput, which is supported by the interface, is up to 300MB/s.
SATA III.(revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.
PCI Expressinterface (3rd Gen). PCI Express 3.0’s 8 GT/s bit rate effectively delivers 985 MB/s per lane.
Ok, now that we’re clear on some of the tech terms … let’s get down to the nitty gritty. Which form factor offer the fastest SSD performance?
In our tests, we’ll be using disk benchmarking software such as ATTO Disk Benchmark, CrystalMark and Anvil Storage Utility. We’ve prepared three laptops for testing, all of which have one thing in common … they all use 256GB SSDs with different interfaces and form factors. Let’s see which one comes out on top !!
| Dell XPS13 (9343) |
Dell Latitude 7250 |
Dell Latitude E7370 | |
| Processor | Intel Core i7 @ 2.4GHz | 英特尔酷睿i5 @ 2.3 ghz | Intel Core M5 @ 1.1GHz |
| SSD Manufacturer | 三星 | 三星 | Toshiba |
| Form Factor | M.2 | mSATA | PCI Express Mini (M.2) |
| Interface | SATA I.I | SATA III. | PCI-E（第3 Gen） |
| Capacity | 256GB | 256GB | 256GB |
| OS. | Win 7 | Win 7 | Win 10 |
OK, now I know some of you maybe thinking that the test laptops have different processors and speeds, and this could skew the results. But what we’re testing is purely disk performance only.

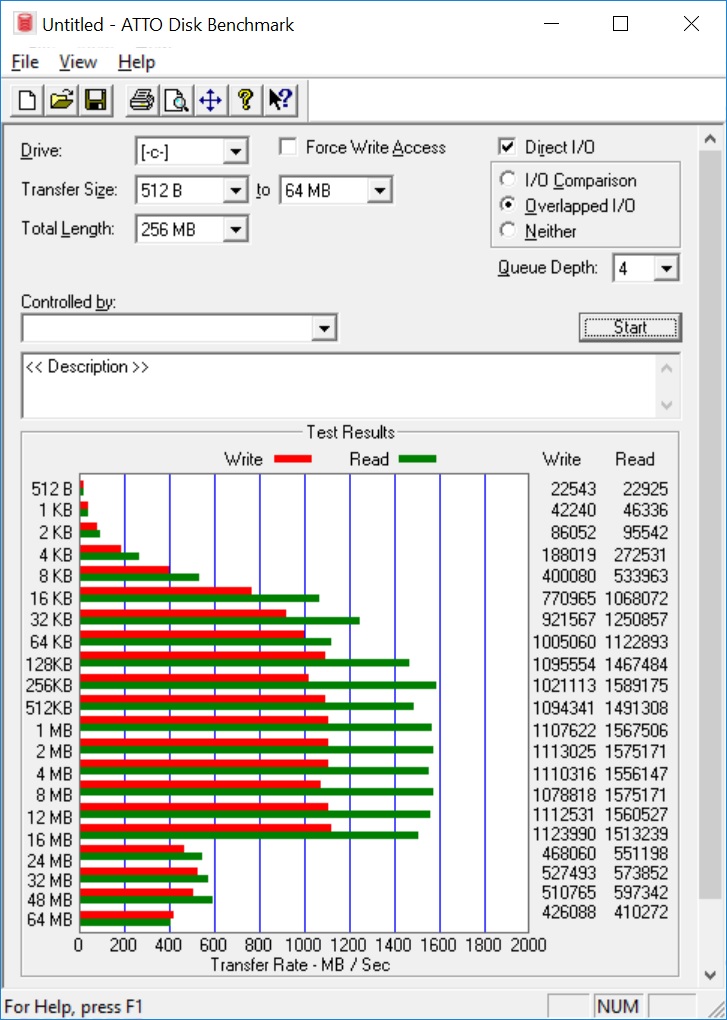

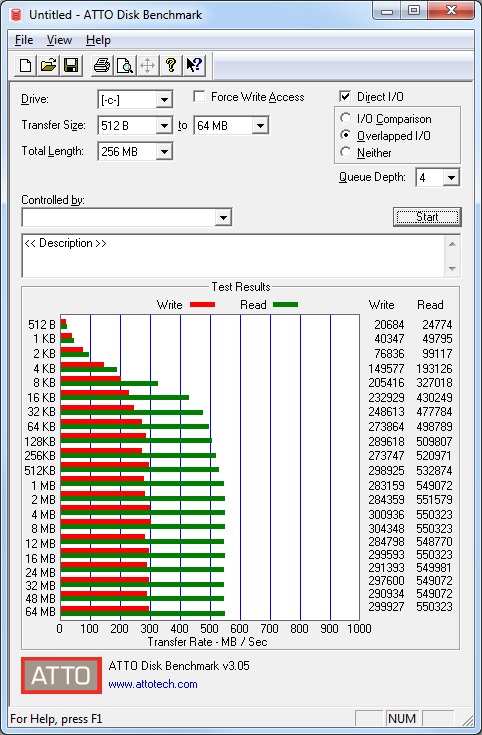

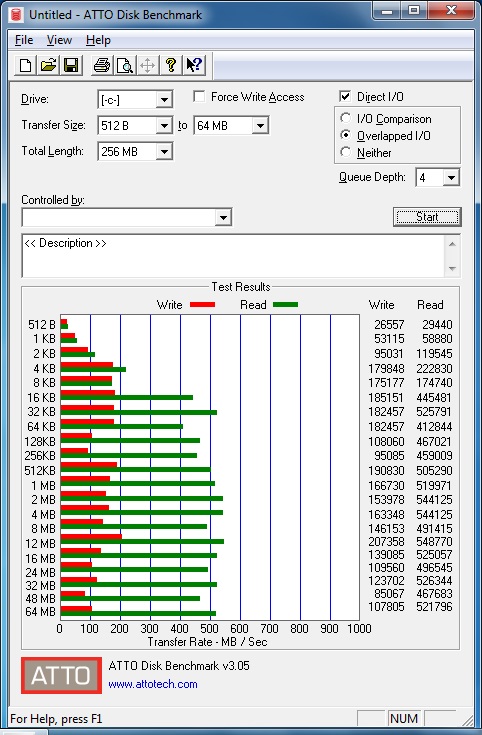

ATTO Disk Benchmark
| PCI Express (3rd Gen) M.2 |
mSATA (SATA III) | M.2 (SATA II) |
| Max Read Speed: 1,589Mb/sec Max Write Speed: 1,123 Mb/sec |
Max Read Speed: 551 Mb/sec Max Write Speed: 304 Mb/sec |
最大读取速度：548 MB /秒 Max Write Speed: 207 Mb/sec |
|
||

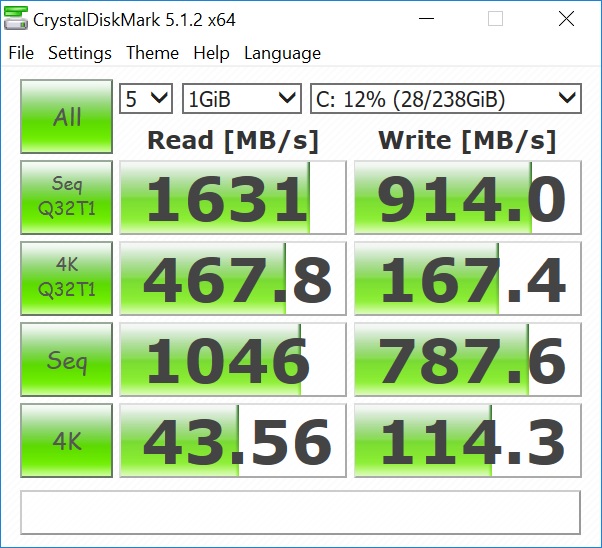

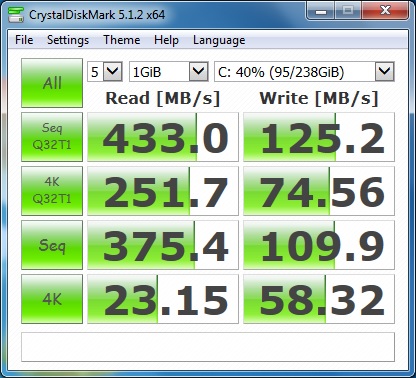

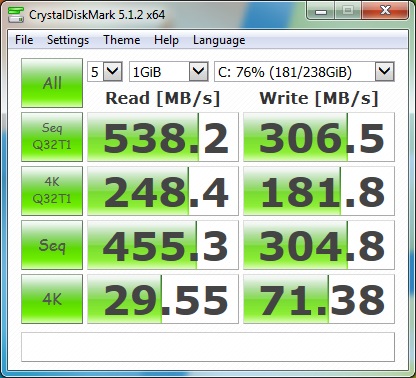

CrystalMark (4k – Q32T1)
| PCI Express (3rd Gen) M.2 |
mSATA (SATA III) | M.2 (SATA II) |
| Max Read: 467.8Mb/sec Max Write: 167.4 Mb/sec |
Max Read: 248.4 Mb/sec 最大写作：181.8MB /秒 |
Max Read: 251.7 Mb/sec Max Write: 109.9Mb/sec |
|
||

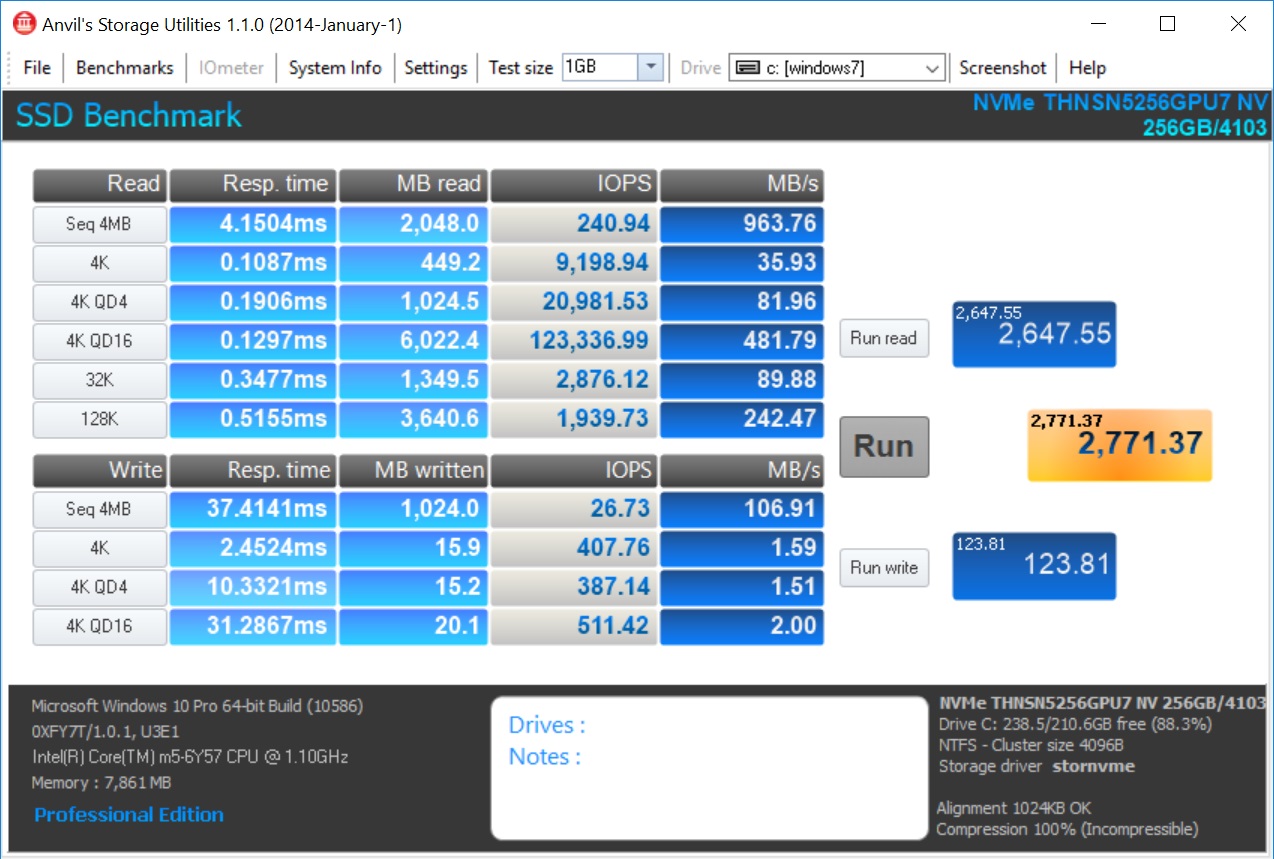

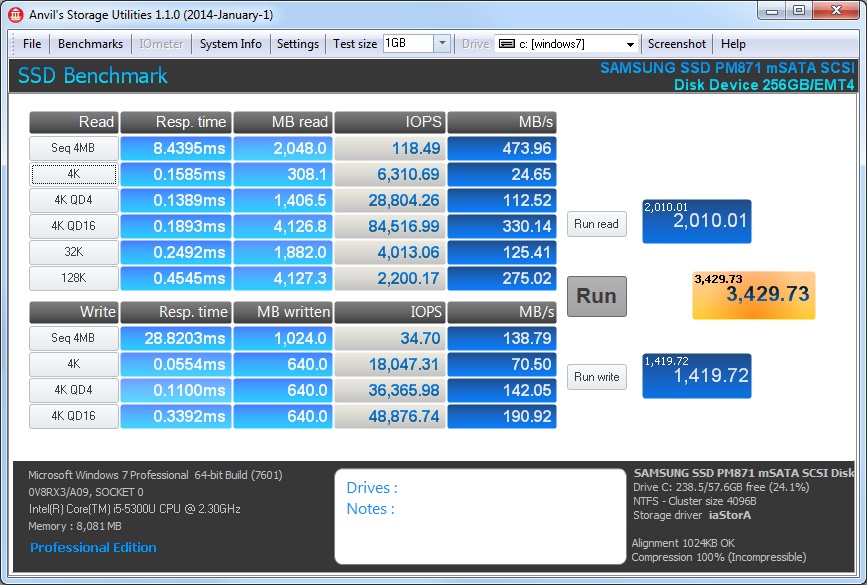

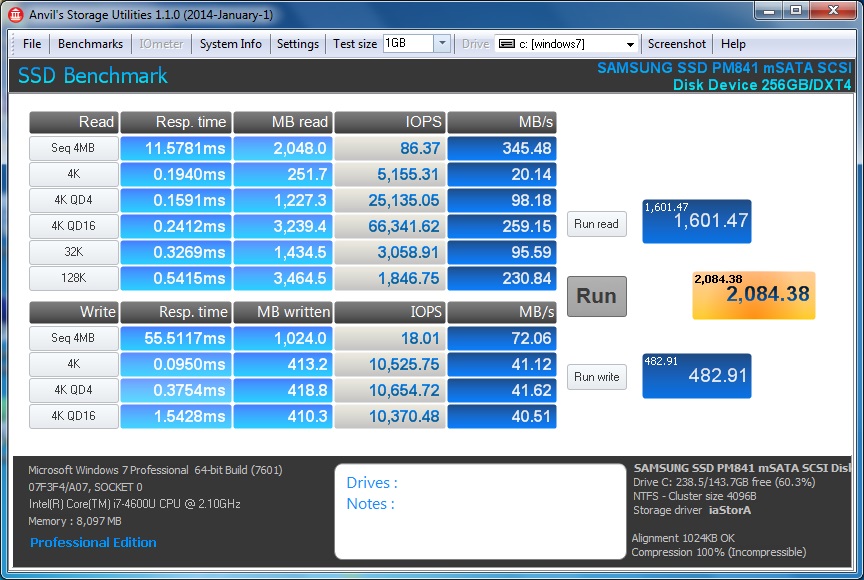

Anvil’s Storage Utilities (IOPS, 4K – QD16)
| PCI Express (3rd Gen) M.2 |
mSATA (SATA III) | M.2 (SATA II) |
| 123.336.29 | 84,516.99 | 66,341.62 |
|
||
Verdict and Conclusion
As expected the SSD using the SATA-II interface is the slowest of the lot. While the SSD with the PCI Express (3rd Gen) interface produced the fastest results. The SATA-III based SSD came in a close second.
The thing to remember is … not to be fooled by the new M.2 form factor being advertised as the latest and greatest. It isn’t and it doesn’t give you better performance. The M.2 is just a form factor (new size and connector type). If you want performance, just make sure you get the SSD with the faster interface … and that would be either SATA-III or PCI Express (3rd Gen).
虽然我还没有遇到一个基于SATA-III M。2 SSD yet … I’m sure we’ll be seeing a lot of more over the coming months as mSATA slowly phases out over time.
To wrap up ….
- mSATA, M.2和PCI Express Mini（m.2）是form factors(the size and connector type) and has NO impact on performance.
- SATA-I, SATA-II, SATA-III和PCI Express (3rd Gen)areinterfaces和this will determine the performance of your SSD.
