This is one of our first entries for ourMod My Box™Sunky套件主持的特殊功能。nba季后赛欧宝直播它被称为Dragon Caseand it was sent in by John aka Oldman …
“Having a woodshop I deceided to build an all wood pc case of course it had to be a great wood so Black Walnut was picked. The case frame is made of ¾” thick stock 9” Wide, 21” Tall, 18” Deep.”
照片库
Description

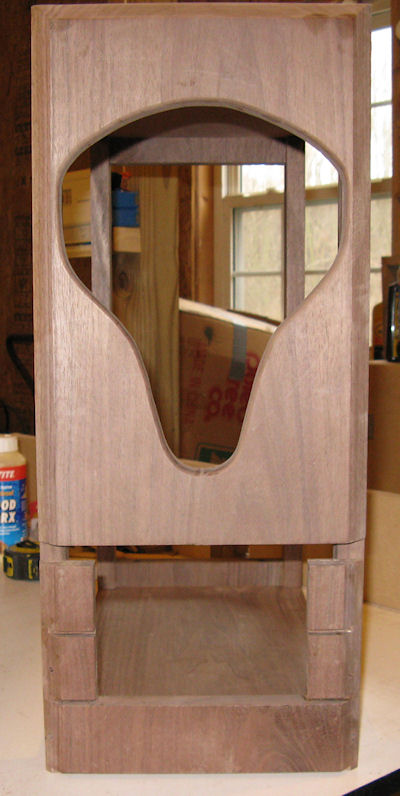

#1 shows you the front with the exposed drive bays at the bottom with an intake clearly seen at the top, #1A was a test setup of the cooler making sure I had room for the Mb/Cpu, #2 a shot of the motherboard tray made from ¼” cabinet grade plywood spray painted with a Copper Metalic paint, twin 4” exhaust fans and the card cage.
Now to the fun part I love to do scroll saw work so why not on this project, #3 now shows you the finished drive bay I thin cut a strip of Black Walnut cut the slot and glued strips to the DVD, lower decal and divider strips still Walnut but sprayed with Gold sparkle paint, the feet four total were cut on the band saw and hand filed to the finished product.
现在为什么它被称为龙案＃4左门面板通过窗口仍然覆盖着保护表，＃4a关闭这个龙尺寸尺寸10 1/4“高6 1/2”宽，模式是粘粘在核桃上，然后每件拼图拼凑起来，砂磨然后粘在胶片上，然后用红色闪耀的涂料涂上一块红色的闪光漆，两层漆完成了这一侧。
#5 the right side dragon measures 15” Tall 9” Wide same process as the left panel, #6 now to my best yet one piece of ¼” walnut, this dragon measures 8” Tall 7 ¼” Wide took 2 days to cut on the Scroll saw, pattern was tack glued to the wood, holes drill for cutting cut/sanded and four coats of Lacquer.
＃7我将其安装在¼“黑色网上并用9”橙色条带灯顶部和底部点亮。
#8 The finished case before adding the hardware.
如果需要，我有更多图片从零件向图纸显示每个步骤。John Aka“Oldman”
Name of Modder:Oldman Name of the Mod:龙案 Location:USA 提交：2008 |
